Family Symbols
ConVoid families include built-in 2D symbols that represent openings in your plan views. This chapter shows you all available symbols and explains how to customize their appearance.
Symbol Color

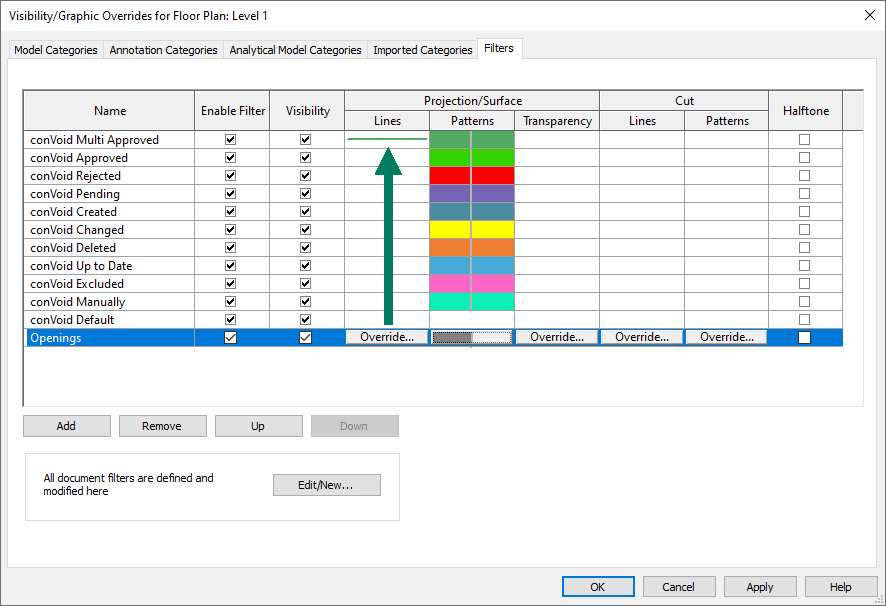

Opening symbols appear in black by default. You can change the color by applying a Revit view filter to the "Generic Models" category in your view.
If the color does not change after adding a filter, check the filter's position in the list. Filters higher in the list take priority. Move your color filter above any conflicting filters.
Line Weight

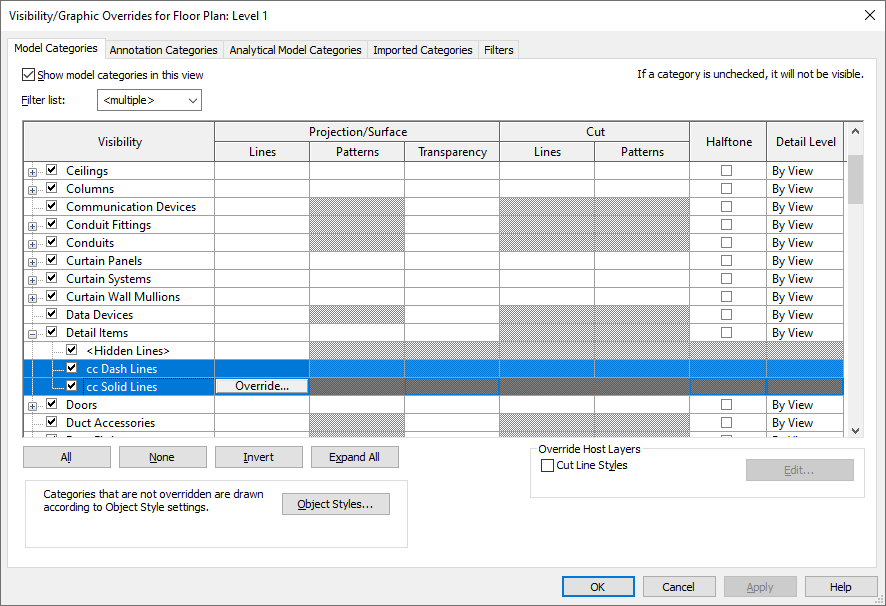

To modify the line weight of opening symbols, override the line styles "CC Solid Lines" and "CC Dash Lines" in the Visibility/Graphics dialog of your view.
Symbol Types
In case the symbols are not shown correctly in your 2D view please refer to Level and Visibility of Openings.
Rectangular Symbols
Cross Pattern
Cross - Solid - filled
Cross - Dash - filled
Cross - Solid - half filled
Cross - Dash - half filled
Cross - Solid - not filled
Diagonal Pattern
Diagonal - Solid - filled
Diagonal - Dash - filled
Diagonal - Solid - filled - flipped
Diagonal - Dash - filled - flipped
Diagonal - Solid - half filled
Diagonal - Dash - half filled
Diagonal - Solid - half filled - flipped
Diagonal - Dash - half filled - flipped
Diagonal - Solid - not filled
Diagonal - Dash - not filled
Shadow Pattern
Shadow - Solid - filled
Shadow - Dash - filled
Shadow - Solid - half filled
Shadow - Dash - half filled
Shadow - Solid - not filled
Shadow - Dash - not filled
Pipe Pattern
Pipe symbols are only available in the solid line style.
Pipe - Solid - filled
Pipe - Solid - half filled
Pipe - Solid - not filled
Simple Outline and Frame
Frame - Solid - filled
Frame - Solid - half filled
Rectangle - Solid - filled
Rectangle - Dash - filled
Rectangle - Solid - not filled
Rectangle - Dash - not filled
Circular Symbols
Shadow Pattern
Shadow - Solid - filled
Shadow - Dash - filled
Shadow - Solid - half filled
Shadow - Dash - half filled
Shadow - Solid - not filled
Shadow - Dash - not filled
Cross Pattern
Cross - Solid - filled
Cross - Dash - filled
Cross - Solid - half filled
Cross - Dash - half filled
Cross - Solid - not filled
Cross - Dash - not filled
Diagonal Pattern
Diagonal - Solid - filled
Diagonal - Dash - filled
Diagonal - Solid - not filled
Diagonal - Dash - half filled
Simple Outline
Circular - Solid - filled
Circular - Dash - filled
Circular - Solid - not filled
Circular - Dash - not filled
